GAS CHROMATOGRAPHS Crystal 9000

Crystal 9000 is a high-end gas chromatography system created to meet all challenges. The original design of the system’s components offers a universal platform to reach maximum flexibility and efficiency.

25 years of experience launched Chromatec to develop the fully automated Crystal 9000 GC to cover a wide range of applications with the easiest way to function.

Crystal 9000 GC’s additional tools and accessories could be provided to increase productivity and laboratory throughput.

By that, we have managed to reach the unreachable, unifying the three aspects of any analytical instrument:
– Performance in task solving
– Stability during the time
– Cost-saving

Accessories

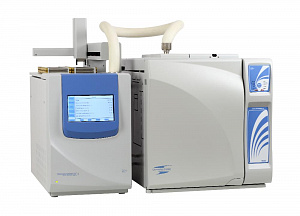

Thermal desorbers
Liquid autosamplers

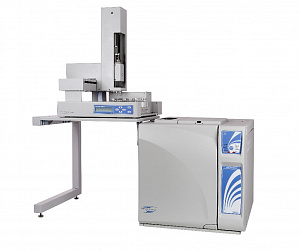

Headspace samplers
Hydrogen and clean air generators

Gas Flow & Pressure control	Unified Electronic Pneumatic System (UEPC)
Maximum total flow	1250 mL/min for any gas
Pressure control setpoint resolution	0.01 kPa / 0.001 psi
Number of inlet/detectors simultaneously	3 inlets / 4 detectors
Detector range	FID, TCD, FPD, PID, ECD, CCD, PDD, MSD
Inlets available	Packed, Split/splitless, Programmable Split/splitless (PTV)
Retention time repeatability	0.008 min
brand	CHROMATEC
